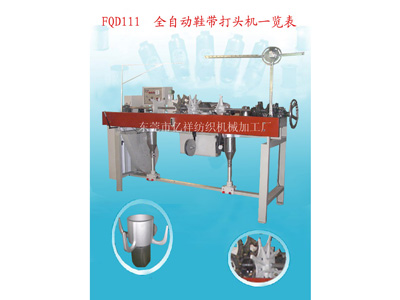

亿祥纺织机械全自动鞋带打头机安装自动收带装置，微电脑设定参数自动计数。全自动化上胶片，打头，裁断、收带于一机，实现一人多机，设备稳定,高效率。适用一般成衣带打头、鞋带包头、图案印刷胶片及手提袋提带打头，机器的型号有62``，85``，100``，120``，成品长度范围：33CM-350CM，产能：40-80条/分，模具耐用，规格多。
全自动手提带打头机特性:
1、温度自动调整约在50度~70度，到达设定位置时会自行衡温
2、进口电料，主电机过载保护功能,
3、装在特殊装置，精密零件特殊处理，模具寿命长
4、结构坚固，特别加装机身保护壳，操作更加安全
5、具有相序保护功能，以防止由于反相而引起结构机器部件损坏，当接线反相时无法启动，需重新换相、接线
6、具有无胶片自动停机功能，以防止机台空转，降低损耗
7、特别安装一组自动收带装置于机械上，收带装置经数量设定后自动计数，当收带勾收集达到设定数量后会自动旋转，实现一人多机，大大提高生产效率
8、全自动自动送带、打头、切断、收带.

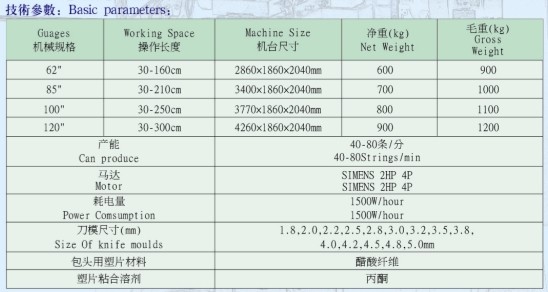

产品参数：
1、包头用塑片材料： 二醋醇纤维素 2、塑片粘合溶剂： 丙酮 3、耗电量:1.5度/小时(马达2HP 4P) 4、刀模尺寸:1.8~5.0mm 5、净重:600KG 6、机械尺寸:2880*1140*1750
东莞市亿祥纺织机械加工厂  肖小姐 13712803962

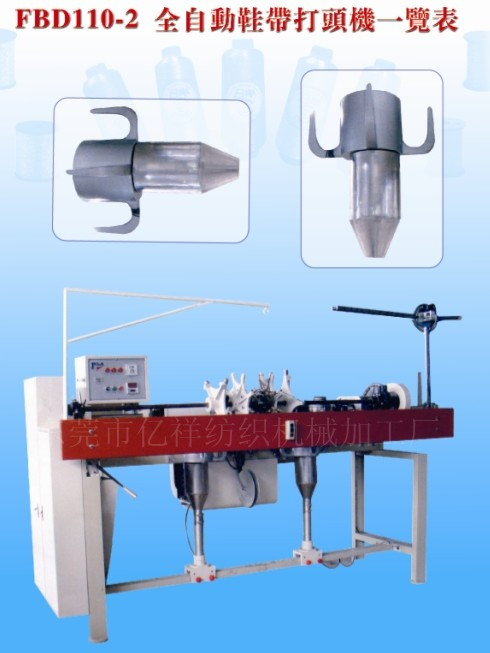

Full-Automatic shoelace tipping machine
Uniquely equipped with an automatic takeup device shich features one-operator-and mulltiple-machine,the amchine is stable running and high efficient.Chambers are divided into four in specification of 65 inch,85 inch,100inch and 120inch separately.the lengths between 0.4m :and 3m are available.productivity:40~80strip/min.
Features:
1.The temperature ranges from 50'C to 70'C(automatic).Automatic measurement will be performed if the destined temperature is reached.
2.The main motor is under overload protection.
3.With particular devices,the mold boasts long lifespan.
4.With firm structures especially the protection shell for the frame,safer operations are promised.
5.It is armed with a phase function which specializes in preventing damages of mechanism parts that may be caused by a reversed phase.The machine doesn't work if the wiring is reversely connected.At this time,replacement of the phase and the wiring are required.
6.Automatic shutdown function upon miss of films is designed for the machine,so as to avoid idle motion of chambers and finally decreases consumption.
7.A set of automatic takeup devices are exclusively mounted to the machine.They feature automatic count of the quantity once set up.When the collection on the takeup tache arrives at he destined quantity,the machine will run automatically so that mode of one operator with multiple machines wil be fulfilled and the production dfficiency will be improved greatly.
